Understand the workspace

The main workspace keeps receiver controls, signal displays, station tools, and status information in one window.

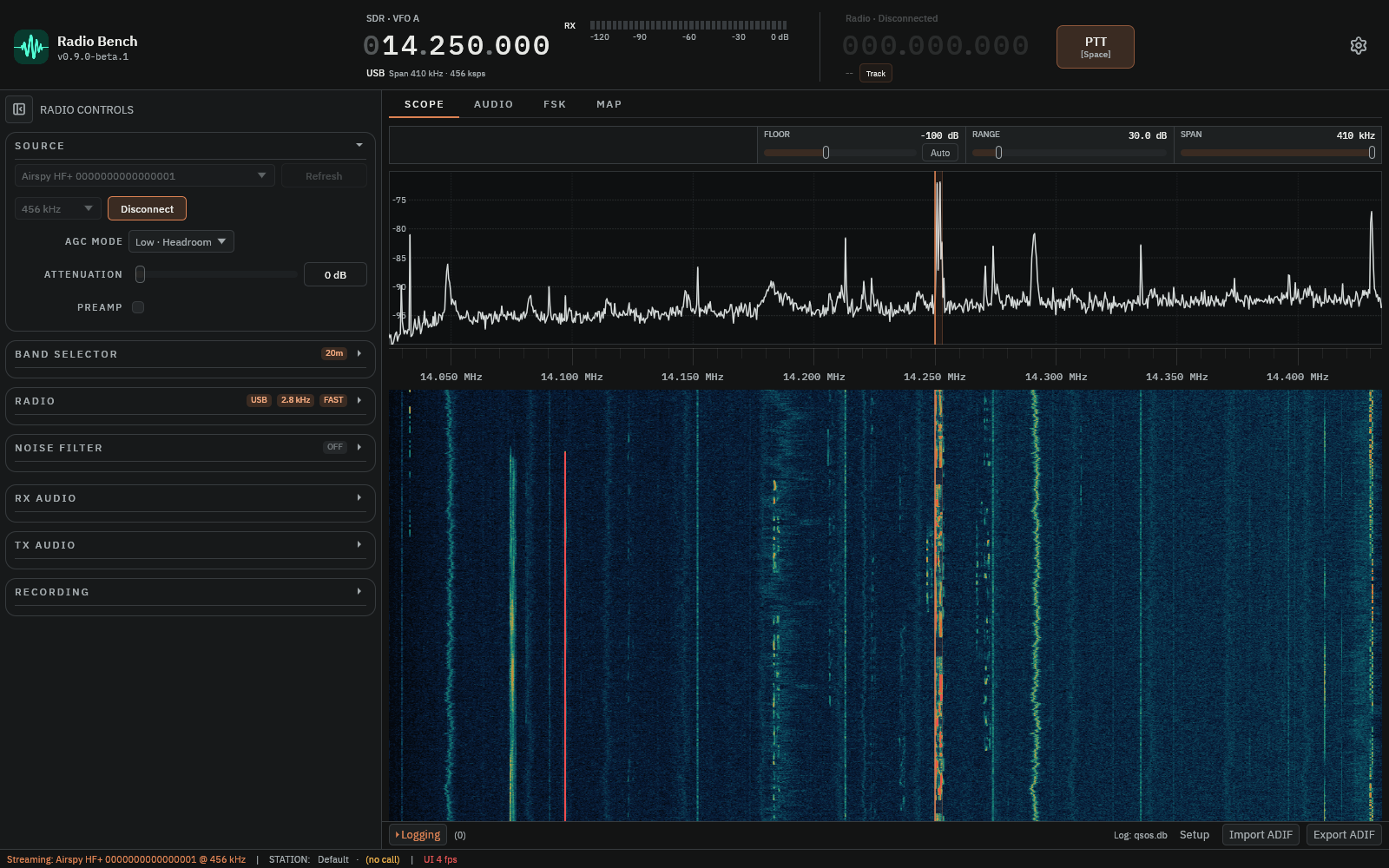

Radio Bench Scope workspace with representative signals in the spectrum and waterfall. — The Scope workspace combines signal displays with receiver and station controls.

Signal display

The spectrum and waterfall show the captured frequency span. Select or drag in the display to tune. The VFO marker shows the tuned frequency and receiver passband.

See spectrum and waterfall for display controls and interpretation.

Control column

The left column holds collapsible sections. SOURCE selects and starts the SDR, and RADIO selects mode, passband, AGC, and receiver processing.

BAND SELECTOR, NOISE FILTER, RX AUDIO, TX AUDIO, and RECORDING hold the remaining receiver and station controls. Select a section header to open it.

Tabs and station tools

The SCOPE, AUDIO, and MAP tabs change the main display. The QSO logger opens as a drawer below the display.

The top bar holds the frequency display, the rig readout, and the PTT control. Open Settings with the button at the top right.

Status information

The status bar reports streaming, recording, CAT, and diagnostic state. A notification explains an action that failed or needs attention.

Open Settings to configure the application. Settings are grouped by function and persist between sessions.

FSK workspace

The FSK tab supports FT8 and FT4 from 0.9.0-beta.1. It combines an audio waterfall, decoded activity and a contact card. RF Scope and Audio remain available during FSK operation.

See the FT8/FT4 guide before operating the scheduled transmit controls.
